ecto plate

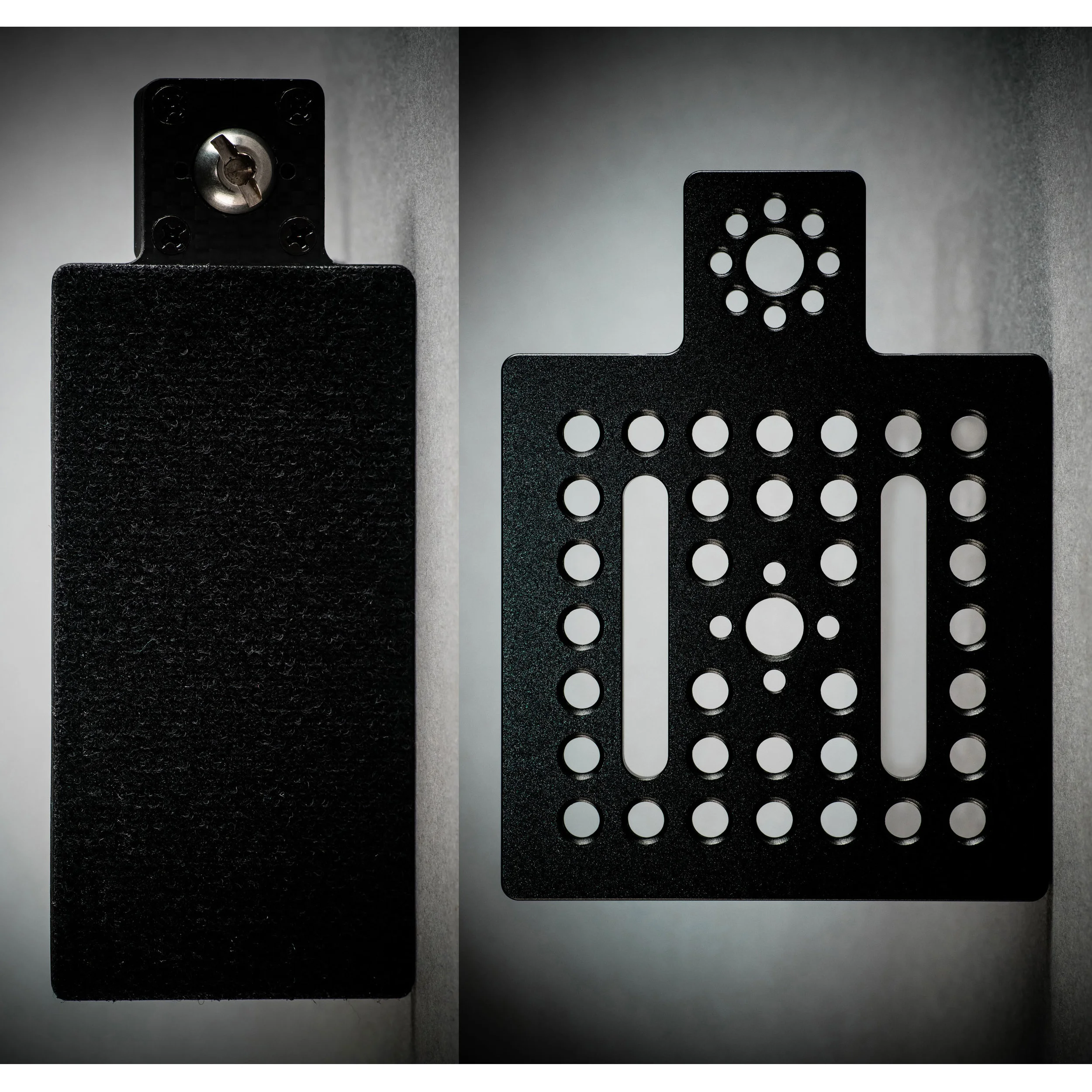

Ecto Plate is a simple, flexible, versatile solution for mounting accessories on your cinema camera rig. Available in 2"x4" and 3"x3" Ecto Plate offers an easy way to quickly and cleanly add just a few inches of precious flat mounting space to your build. Perfect for:

  • Timecode boxes

  • Audio Receivers

  • Cinetape Readouts

  • Wireless HD Transmitters

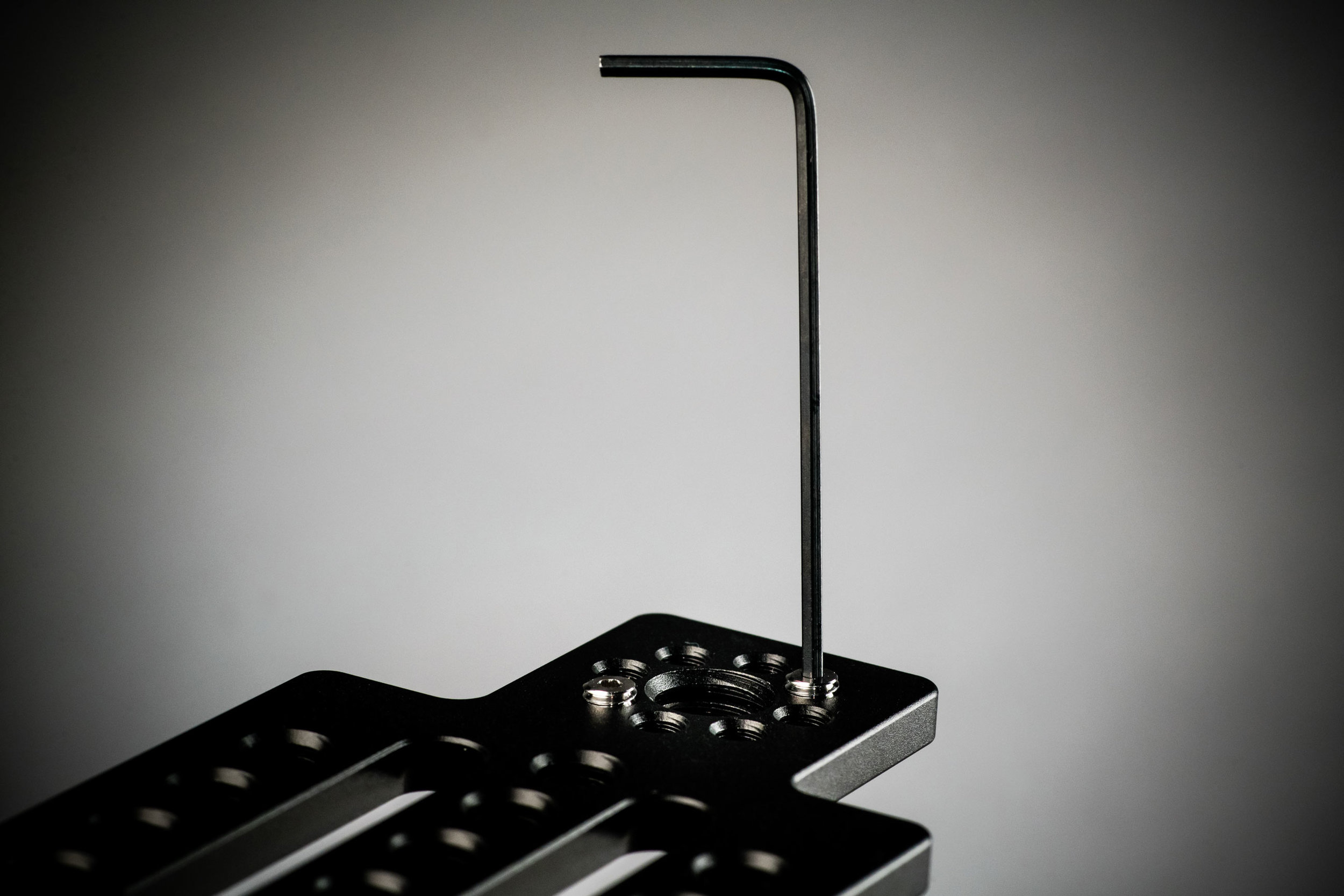

Made from carbon fiber and aircraft-grade aluminum, Ecto Plate is lightweight but sturdy. Retractable/removable Arri-style anti-rotation pins allow quick and secure mounting that won't sag or wiggle loose. Just back out the pins with a standard allen wrench and Ecto Plate mounts flush on any top handle, cage, or cheese-plate.

Ecto Plate CF comes with 3/8-16 (captive) and 1/4-20 mounting screws as well as two female 1/4-20 holes. Bolt your plate directly to the side back or top of the camera when mounting a small accessory box, or get creative and put Ecto Plate on the end of an Noga arm for a multitude of other uses.

Ecto Plate AL & AL-RA also have both 3/8-16 (captive) and 1/4-20 mounting screws plus a bevy of 1/4-20 holes, 3/8-16 center hole (with Arri anti-rotation pin receivers), and several 1/4" pass-through channels. Hard mount directly to the plate or cover with our custom cut Velcro and attach your AKS that way!

Available currently in six different flavors, rest assured there's an Ecto Plate perfect for your application and budget!

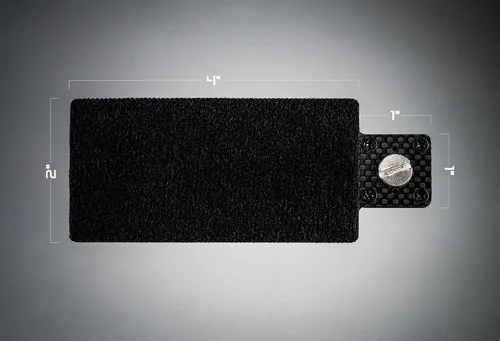

Ecto Plate CF 2x4 V2
82.00

Version 2 is here! Redesigned pins and other great new features all in the same great form factor!

Carbon Fiber. 2 inches wide by 4 inches long. Perfect for: Teradek, Cinetape, timecode, audio box, UDM, UMC, etc.

Quantity:
Add To Cart

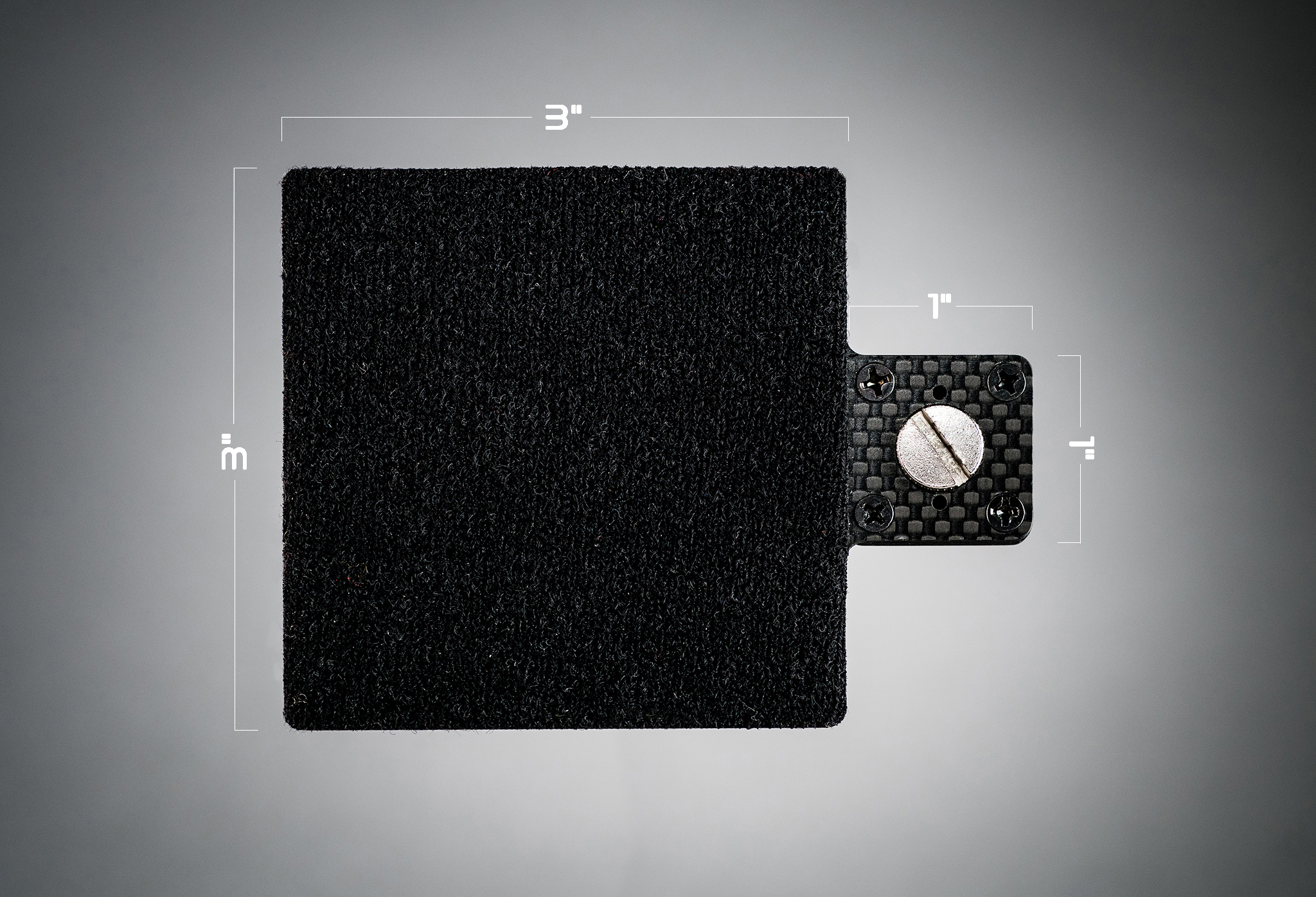

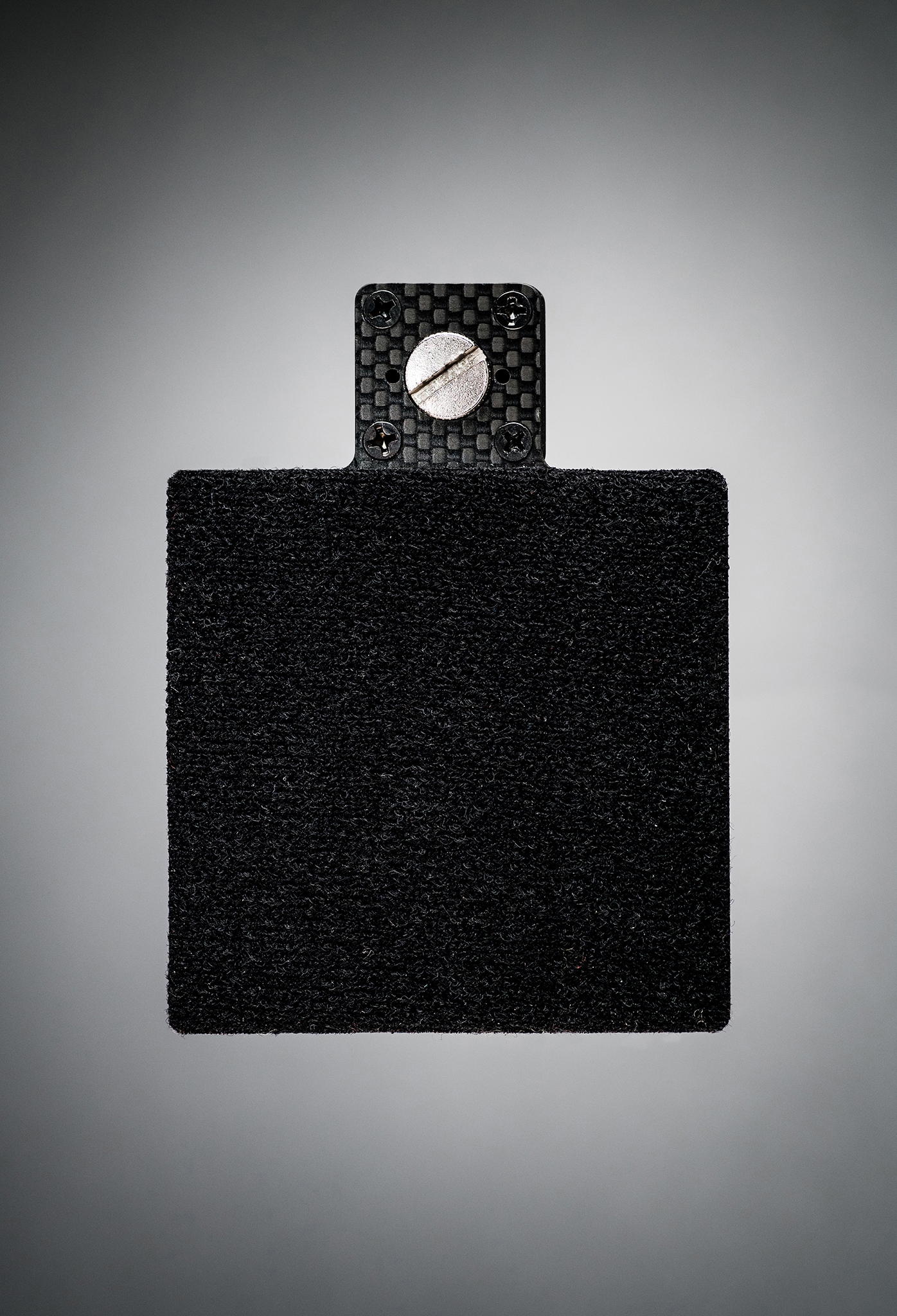

Ecto Plate CF 3x3 V2
82.00

Version 2 is here! Redesigned pins and other great new features all in the same great form factor!

Carbon Fiber. 3 inches wide by 3 inches long. Perfect for: Cinetape readout, timecode/audio box, etc.

Quantity:
Add To Cart
Ecto Plate AL 2x4 V2
47.00

Version 2 is here! Redesigned pins and other great new features all in the same great form factor!

Aluminum. 2 inches wide by 4 inches long. Perfect for: Teradek, Cinetape, timecode, audio box, UDM, UMC, etc.

Comes with four (4) anti-twist pins & one (1) 3/8-16 mounting screw.

Quantity:
Add To Cart

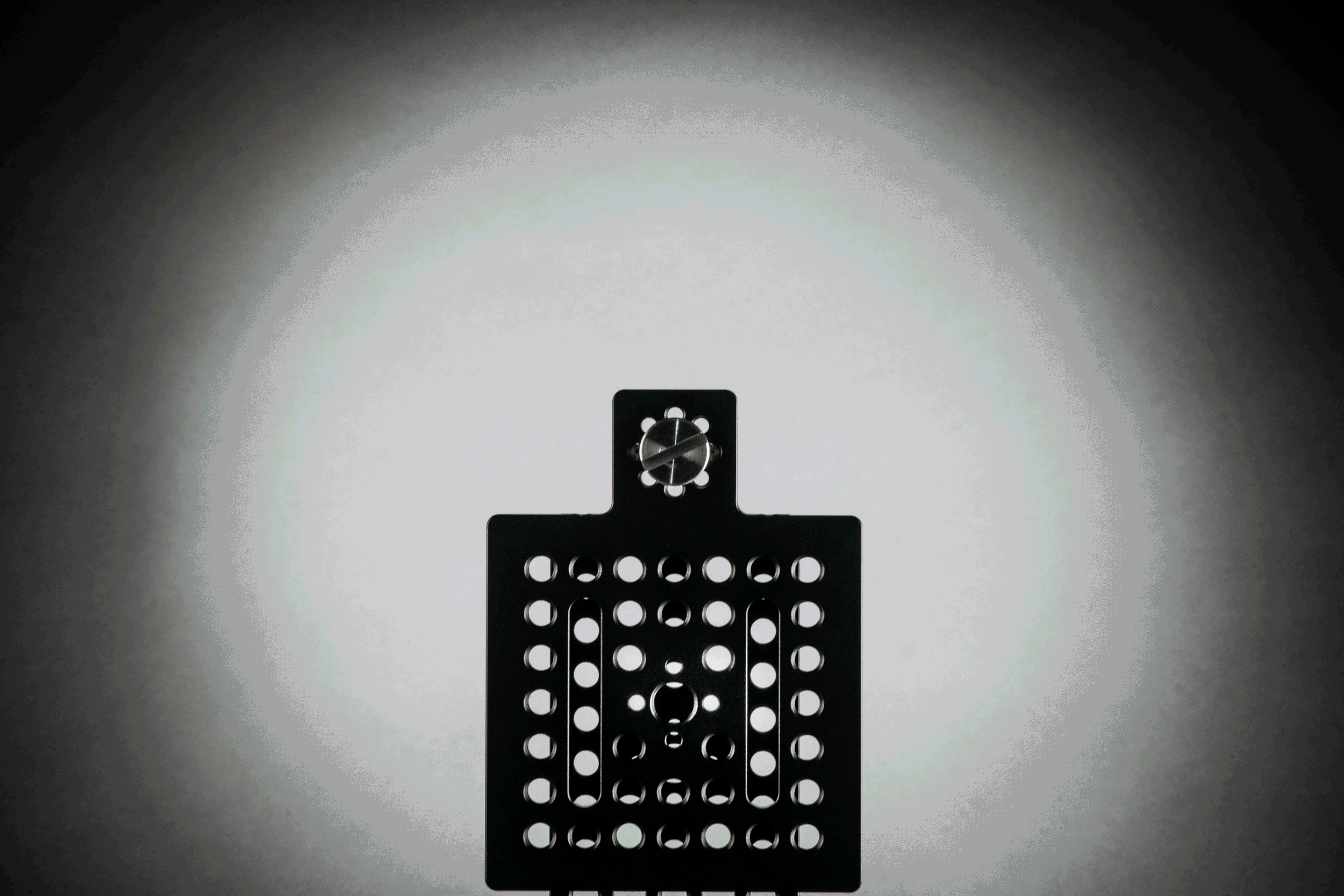

Ecto Plate AL 3x3 V2
47.00

Version 2 is here! Redesigned pins and other great new features all in the same great form factor!

Aluminum. 3 inches wide by 3 inches long. Perfect for: Cinetape readout, timecode/audio box, etc.

Comes with four (4) anti-twist pins & one (1) 3/8-16 mounting screw.

Quantity:
Add To Cart
Ecto Plate AL 2x4 RIGHT-ANGLE
52.00

Say hello to an all new Ecto Plate format! Redesigned pins, other great new features, plus a 90 degree right-angle mounting tab.

Aluminum. 2 inches wide by 4 inches long, with 1 inch right-angle tab. Perfect for: Teradek, Cinetape, timecode, audio box, UDM, UMC, etc.

Comes with four (4) anti-twist pins & one (1) 3/8-16 mounting screw.

Quantity:
Add To Cart
Ecto Plate AL 3x3 RIGHT-ANGLE
52.00

Say hello to an all new Ecto Plate format! Redesigned pins, other great new features, plus a 90 degree right-angle mounting tab.

Aluminum. 3 inches wide by 3 inches long, with 1 inch right-angle tab. Perfect for: Teradek, Cinetape, timecode, audio box, UDM, UMC, etc.

Comes with four (4) anti-twist pins & one (1) 3/8-16 mounting screw.

Quantity:
Add To Cart
Ecto Plate Combo 2 PACK
from 89.00

Our most popular combo!! Pick any two different flavors of Ecto Plate and grab some savings!

Pick Your Plates:
Quantity:
Add To Cart
Ecto Plate Combo 3 PACK
170.00

Need all the different versions? Get one each of all three styles of Ecto Plate and snag some savings!

Pick Your Plates:
Quantity:
Add To Cart
Ecto Plate "She's Gotta Have It" SIX PACK
325.00

Just got to have ‘em all? Get a complete set of all six Ecto Plate versions. Both 2x4 and 3x3 plates in all three styles. Big big savings on this combo!

Quantity:
Add To Cart

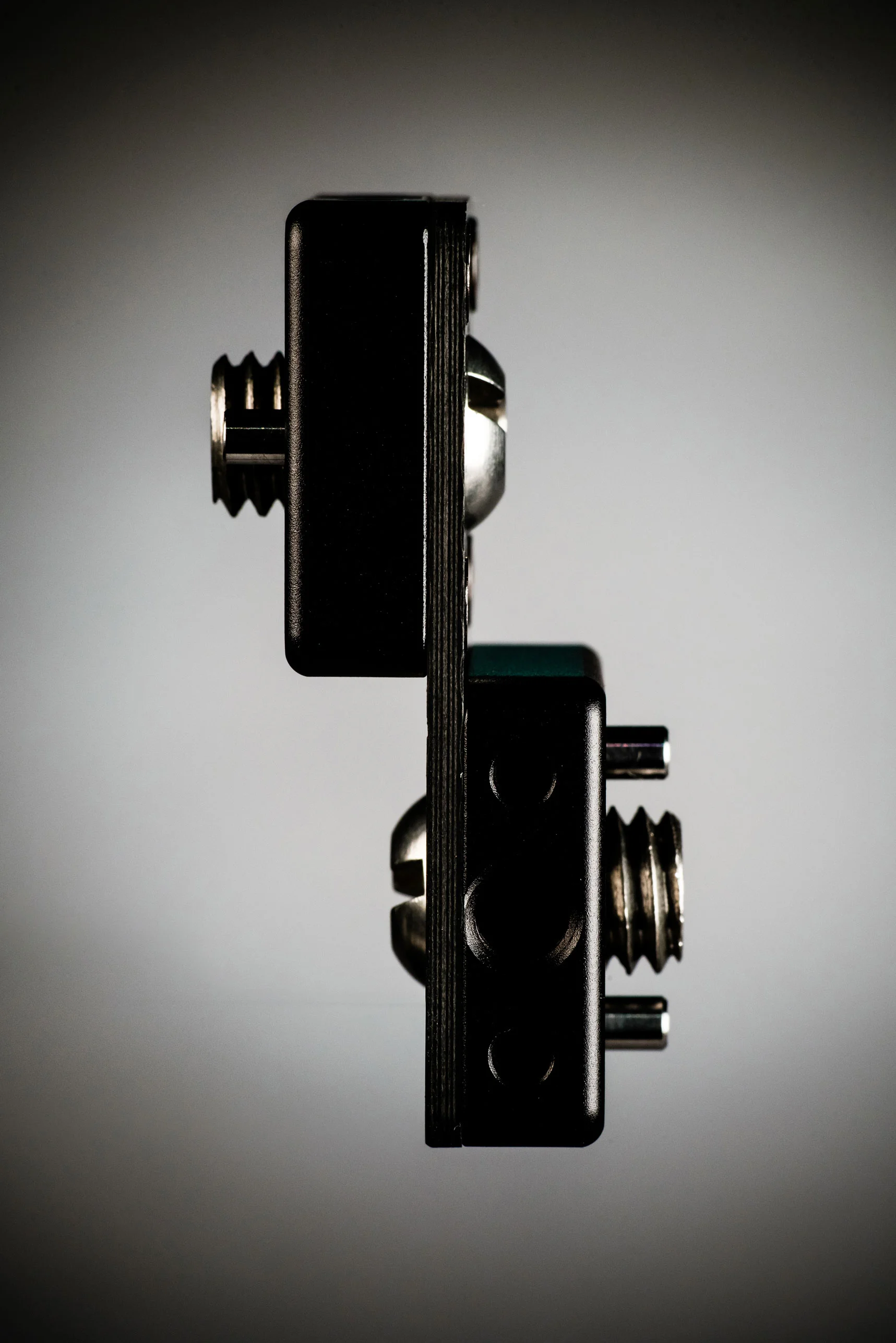

Ecto Coupler
102.00

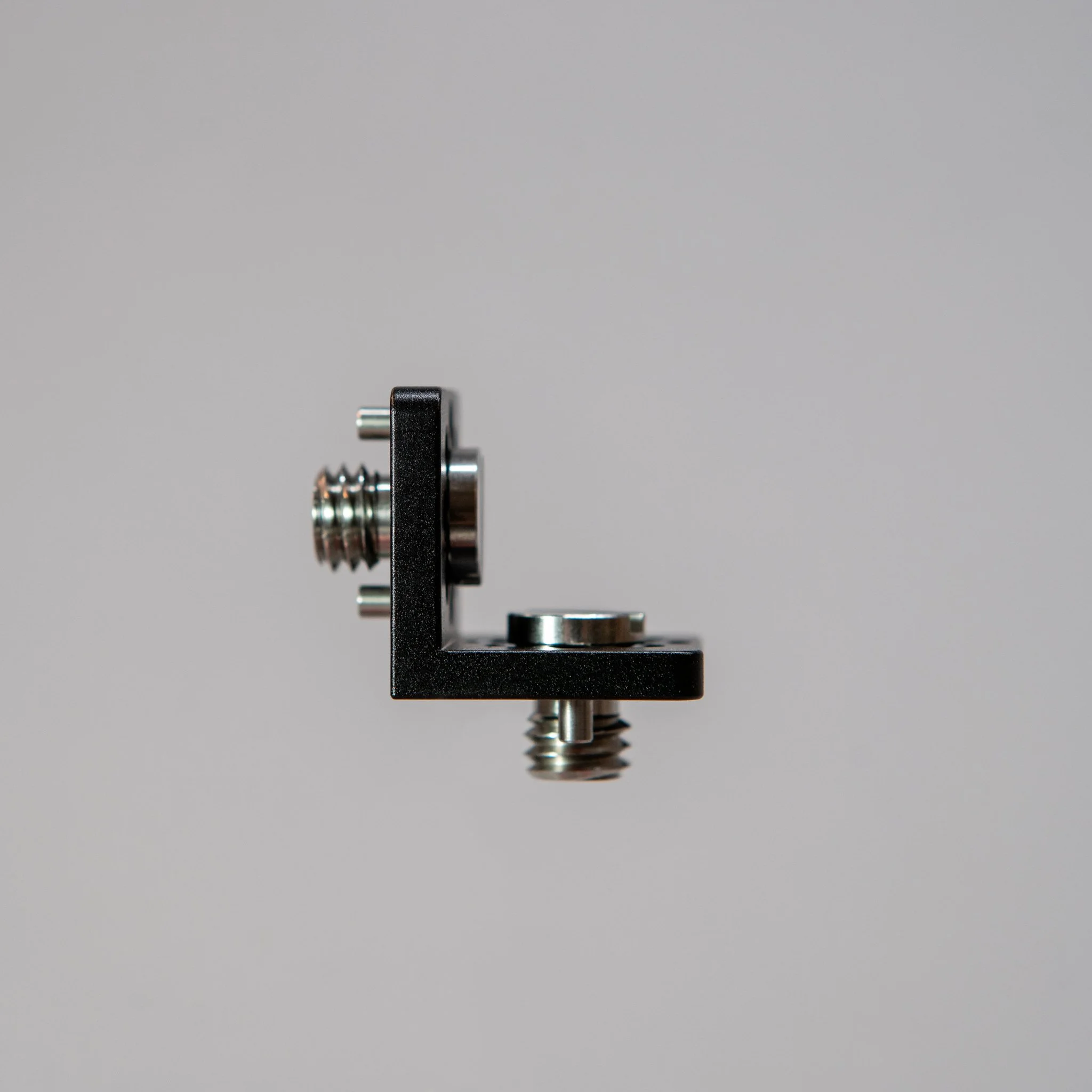

A simple device to mate female-threaded accessories to female-threaded camera cages. All the same great features found the the Ecto Plate CF mounting hub.

Quantity:
Add To Cart
Custom Cut 2x4 Cheese-Plate Velcro
6.00

Genuine Velcro Brand low-profile adhesive sheets, custom laser cut for your AL 2x4 Ecto Plates.

(Working on reduced shipping for this item. If you are just in need of one velcro sheet and are not adding on to a larger order, please email first and we will arrange for appropriate shipping rates.)

Quantity:
Add To Cart
Custom Cut 3x3 Cheese-Plate Velcro
6.00

Genuine Velcro Brand low-profile adhesive sheets, custom laser cut for your AL 3x3 Ecto Plates.

(Working on reduced shipping for this item. If you are just in need of one velcro sheet and are not adding on to a larger order, please email first and we will arrange for appropriate shipping rates.)

Quantity:
Add To Cart

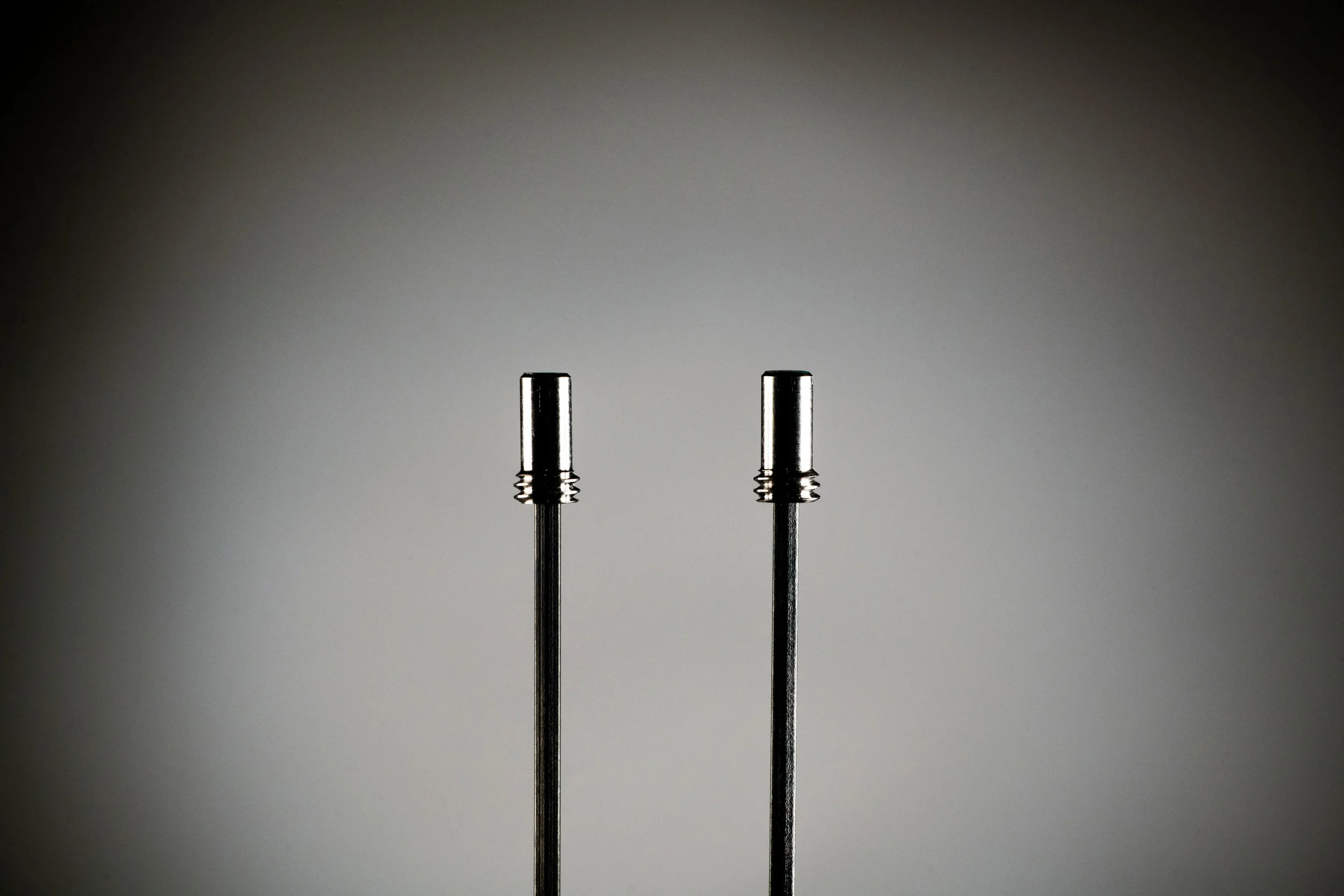

Replacement/Spare Ecto Plate Pins
8.00

One set of two (2) stainless steel replacement 3mm Arri anti-rotation pins. These pins are universal between all V2 models of Ecto Plate (CF and AL)**.

(Working on reduced shipping for this item. If you are just in need of new pins and not adding on to a larger order, please email first and we will arrange for appropriate shipping rates.)

**PLEASE NOTE: These pins are NOT compatible with the original version 1 plates.

Quantity:
Add To Cart


FEATURES

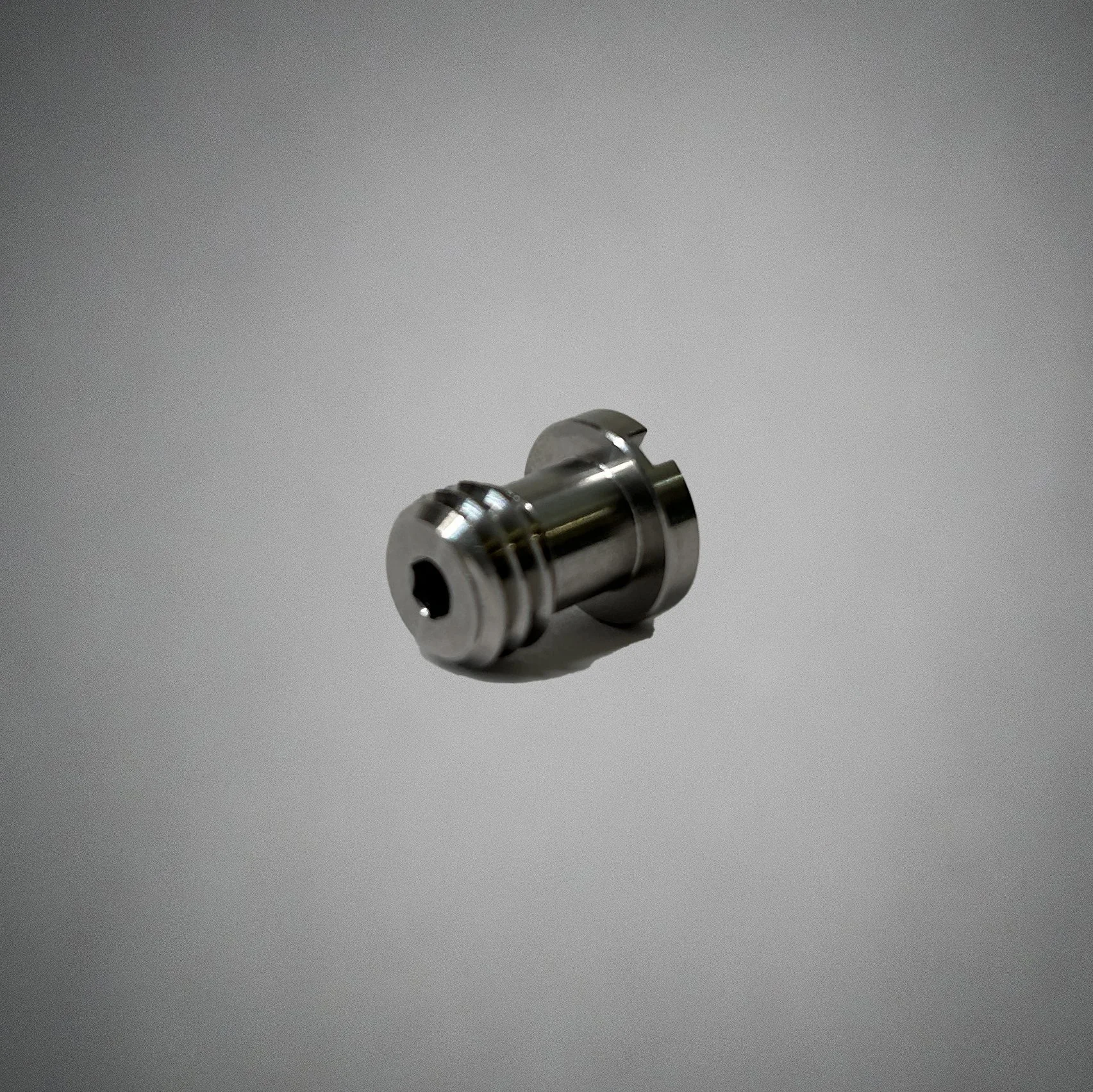

  • 3/8-16 mounting screw (captive)

  • 1/4-20 mounting screw

  • Retractible/removable Arri-style anti-rotation pins

  • female threaded 1/4-20 holes

  • female threaded 3/8-16 holes (with Arri-style anti-rotation pin receivers)

  • 1/4" pass-through channels

  • 2mm plain weave carbon fiber, 6061 aircraft-grade aluminum (black anodized)


SPECIFICATIONS

dimensions (L x W x H)

Ecto Plate CF 2x4 V2:
5 x 2 x 0.38" (127 x 50.8 x 9.6mm)

Ecto Plate CF 3x3 V2:
4 x 3 x 0.38" (101.6 x 76.2 x 9.6mm)

Ecto Plate AL 2x4 V2:
5 x 2 x 0.16" (127 x 50.8 x 4.2mm)

Ecto Plate AL 3x3 V2:
4 x 3 x 0.16" (101.6 x 76.2 x 4.2mm)

Ecto Plate AL 2x4 RA:
4 x 2 x 1" (101.6 x 50.8 x 25mm)

Ecto Plate AL 3x3 RA:
3 x 3 x 1" (76.2 x 76.2 x 25mm)

weight

Ecto Plate CF 2x4 V2:
1.3oz

Ecto Plate CF 3x3 V2:
1.4oz

Ecto Plate AL 2x4 V2 & 2x4 RA:
1.8oz

Ecto Plate AL 3x3 V2 & 3x3 RA:
2.1oz

mounting points

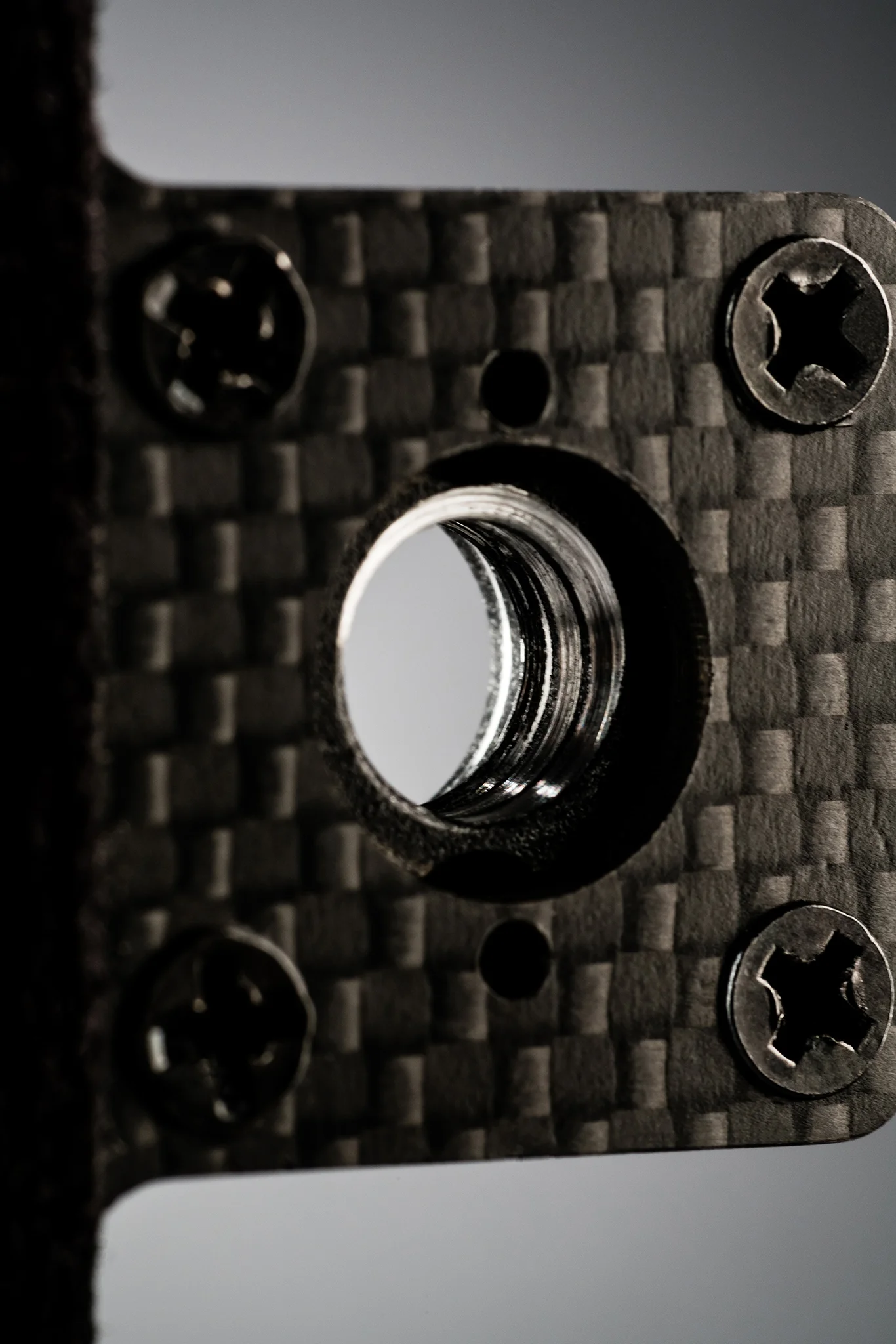

Ecto Plate CF V2:
[1x] 3/8-16 captive mounting screw (with retractible* Arri-style anti-rotation pins)
[1x] 1/4-20 mounting screw
[2x] female threaded 1/4-20 holes

Ecto Plate AL 2x4 V2 & 2x4 RA:
[1x] 3/8-16 captive mounting screw (with removable* Arri-style anti-rotation pins)
[1x] female threaded 3/8-16 hole (with Arri-style anti-rotation pin receivers)
[26x] female threaded 1/4-20 holes (9mm on center "Red" spacing)
[4x] 1/4" pass-through channels

Ecto Plate AL 3x3 V2 & 3x3 RA:
[1x] 3/8-16 captive mounting screw (with removable* Arri-style anti-rotation pins)
[1x] female threaded 3/8-16 hole (with Arri-style anti-rotation pin receivers)
[34x] female threaded 1/4-20 holes (9mm on center "Red" spacing)
[2x] 1/4" pass-through channels

*Use standard 1.5mm allen wrench to adjust all anti-twist pins.

included hardware

CF Ecto Plates:
[1x] 3/8-16 mounting screw
[1x] 1/4-20 mounting screw
[2x] 3mm anti-twist pins

AL Ecto Plates:
[1x] 3/8-16 mounting screw
[4x] 3mm anti-twist pins
