Patent Pending

proton pack V2 (for rental and sale)

Starting List: $250/day (to rent)
MSRP: [email us for a quote] (to purchase)
(patent pending)

Proton Pack V2 is a backpack-worn camera accessories platform. It includes a multitude of mounting options for your:

Batteries (gold mount or V-mount)
MDR
Wireless HD Transmitter
Timecode generator
Cinetape readout
Focus Monitor
Venice Rialto Camera Body

Handheld shooting and cramped sets often require cameras to be as small as possible. DPs often request that the camera to be completely stripped-down. Proton Pack provides the perfect, elegant solution to accomplish these builds without compromise to your normal workflow.

Convenient velcro surfaces and cheese plates make secure attachments for all of your professional accessories. The business end of your rig can now be as simple as: body, lens, & focus motor. That's it!

Proton Pack's power system is ready for 14v or 26v camera systems and provides 13v breakout power for all peripherals (p-tap & 2pin Lemo).

Ideal for working with Arri Alexa Mini, Red DSMC, and film cameras, Proton Pack is more than simply a backpack plate. It is a complete system providing all the custom cables and accessories you will need for any build.

Email Sales

EMAIL RENTALS

See it in action!

FEATURES

(2x) Gold Mount battery plates (V-mount also available)
14v and 28v camera power
(2x) 13v P-tap accessory power ports

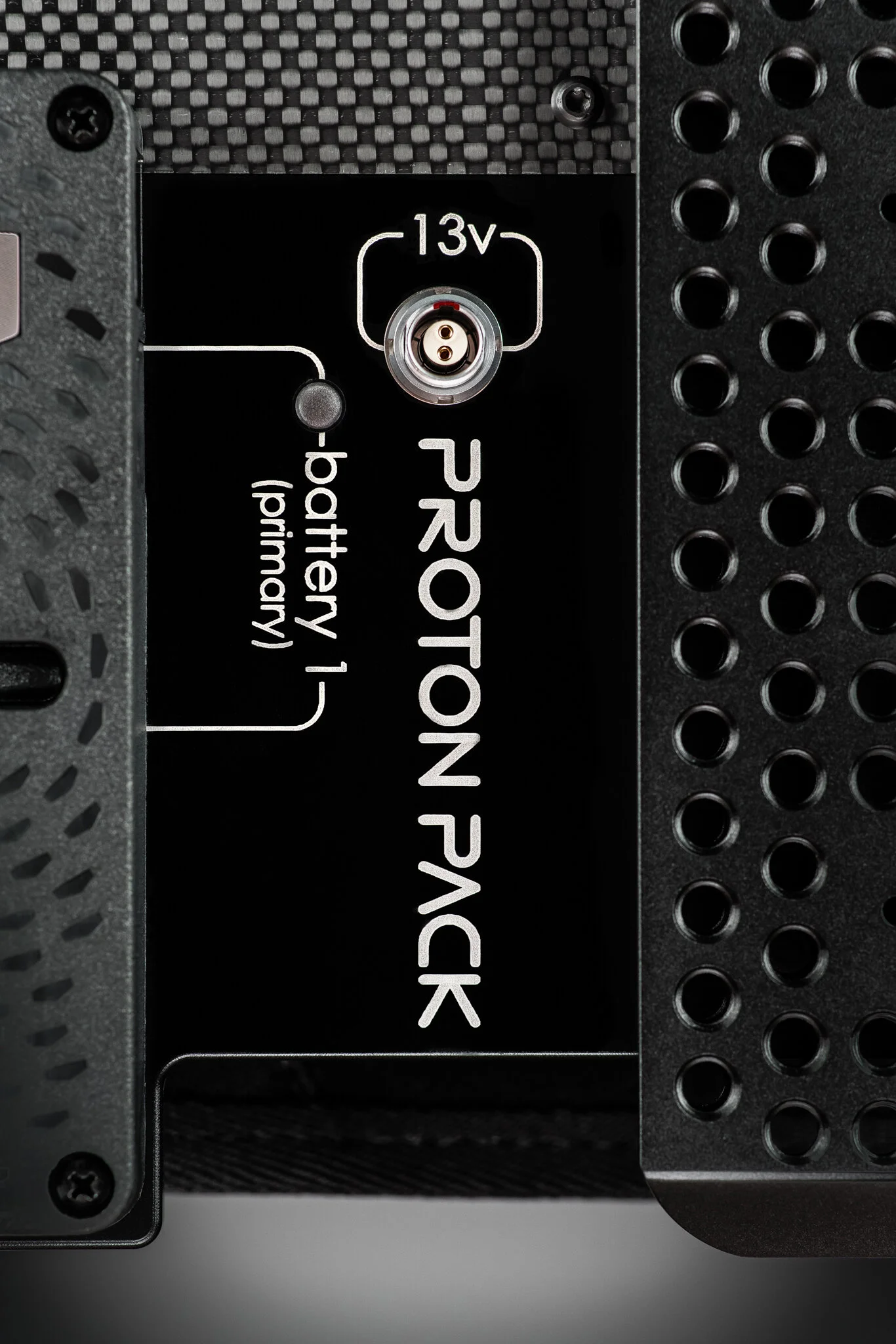

(2x) 13v 2pin Lemo accessory power ports
Comfortable, removable, washable, padded backpack plate & straps
Removable lightweight 2" waist belt
Fitted waterproof rain cover
Center spine: Arri-style dovetail/cheeseplate (lots of 1/4-20 & 3/8-16 threaded holes)
Left and right "Industrial strength" soft-side hook&loop accessory mounting plates
(2x) 3/8-16 accessory mounts with Arri-style anti-rotation pins
Climbing-rated webbing strap handle for carrying and hanging
Left and right cable umbilical strain-relief holes (3/8-16 threaded for additional rigging options)
All CNC milled aluminum and carbon fiber construction

Download User Manual

“STANDARD” KIT CONTENTS

(1x) Proton Pack
(1x) waist belt
(1x) rain cover
(1x) SBK hard case with padded interior & lid organizer
(3x) power pigtail cables
(2x) Preston motor cables
(3x) SDI bnc cables (for video, timecode, & RED run/stop)
(1x) 3pin Fischer R/S extension cable (for Arri run/stop)
(1x) 5pin Lemo timecode input cable
(1x) Cinetape or Lightranger or Sniper sensor cable
(1x) standard length 4-port P-tap splitter box (for backpack power distribution)
(1x) Extra long 4-port P-tap splitter box (for on-camera power distribution)
(1x) removable/re-usable umbilical strain relief system

SPECIFICATIONS

dimensions (L x W x D)

17.75 x 13.5 x 3.5in (45 x 34.3 x 9cm)

weight

5lbs 5.1oz

connectors

backpack: 6pin 2B Lemo (power output)PROTON PACK OPERATING VOLTAGE:

pigtails: 4pin female XLR 14v, 3pin female XLR 14v, 3pin female XLR 28v

hot swap?

14v pigtails: YES

28v pigtails: NO (Proton Pack voltage will drop to single battery output during swapping)

proton pack operating voltage

35v max total input to the circuit board

proton pack operating amperage

15a max output from main camera power port (this will vary depending on the brand & health of your batteries)

6a max output from all combined accessory power ports

pin configurations

backpack: 6(+), 3(-)

4pin 12v pigtail: 1(-), 4(+) [Arri polarity]

3pin 12v pigtail: 1(-), 2(+) [Arri polarity]

3pin 24v pigtail: 1(-), 2(+) [Arri polarity]

2pin 13v Lemo Ports: 1(-), 2(+) [Arri/Teradek/Preston polarity]

case dimensions (L x W x H)

22.3 x 20 x 8.3in (56.6 x 50.8 x 21.1cm)

complete kit shipping weight

20lbs

WARRANTY

Aluminum and carbon fiber components are warranted against defects in materials and workmanship for a period of two (2) years from the date of original retail purchase.

Electronics, electrical connectors, and fabric/padded components are warranted against defects in materials and workmanship for a period of one (1) year from the date of original retail purchase.
