stay puffed power system
magnet-release power plugs for cinema cameras
(PATENTED USPTO#’s US 12.176.665, US D1.051.840 S)
Let’s set the scene. Steadicam all day and you’re flying a power hungry Alexa35. Quick takes with long resets in-between . There’s a limited number of on-board batteries, but you’ve got a kick-ass 2nd AC. She’s all over it. Every time you dock she’s got you plugged into a block battery before the AD calls, “Back to One!” Then there’s a card change and the 1st AC loses connection on their video and Script has a question and it’s, “Camera’s up! Roll sound!” Actors are waiting. Off you go…
...and down topples your stand, the battery cable gets ripped in half and the power port is mangled beyond recognition. Whoops. So it goes.
Now, A THING OF THE PAST.
Backpackrig.com is proud to produce the first ever magnet-release DC power system for the film industry. The Stay Puffed power system is a set of interchangeable camera power plugs with industry standard 12v and 24v block battery cables.
Strong magnets in the plugs allow for safe and convenient single-handed attachment with worry-free breakaway at a moment’s notice. Now quickly move your Steadicam or handheld setup onto “shore power” between takes without fear of accidental damage.
Integrated design features prevent any chance of over-voltage, short circuits, or reverse polarity. Available for every major cinema camera on the market:
- Alexa/Arricam
- Alexa 35/Mini/Mini LF
- Sony Venice/Burano
- RED DSMC2
- RED Ranger
- Panavision DXL
Be ready for anything with this kit of the four most common camera power plugs and both 24 & 12 volt battery cables.
Kit Includes:
-Alexa/Arricam Power Plug
-Alexa Mini/Amira/Alexa35 Power Plug
-RED DSMC2 Power Plug
-Sony Venice Power Plug (4pin XLR)
-3pin XLR 24v Battery Cable* (ARRI POLARITY 1-, 2+)
-4pin XLR 12v Battery Cable

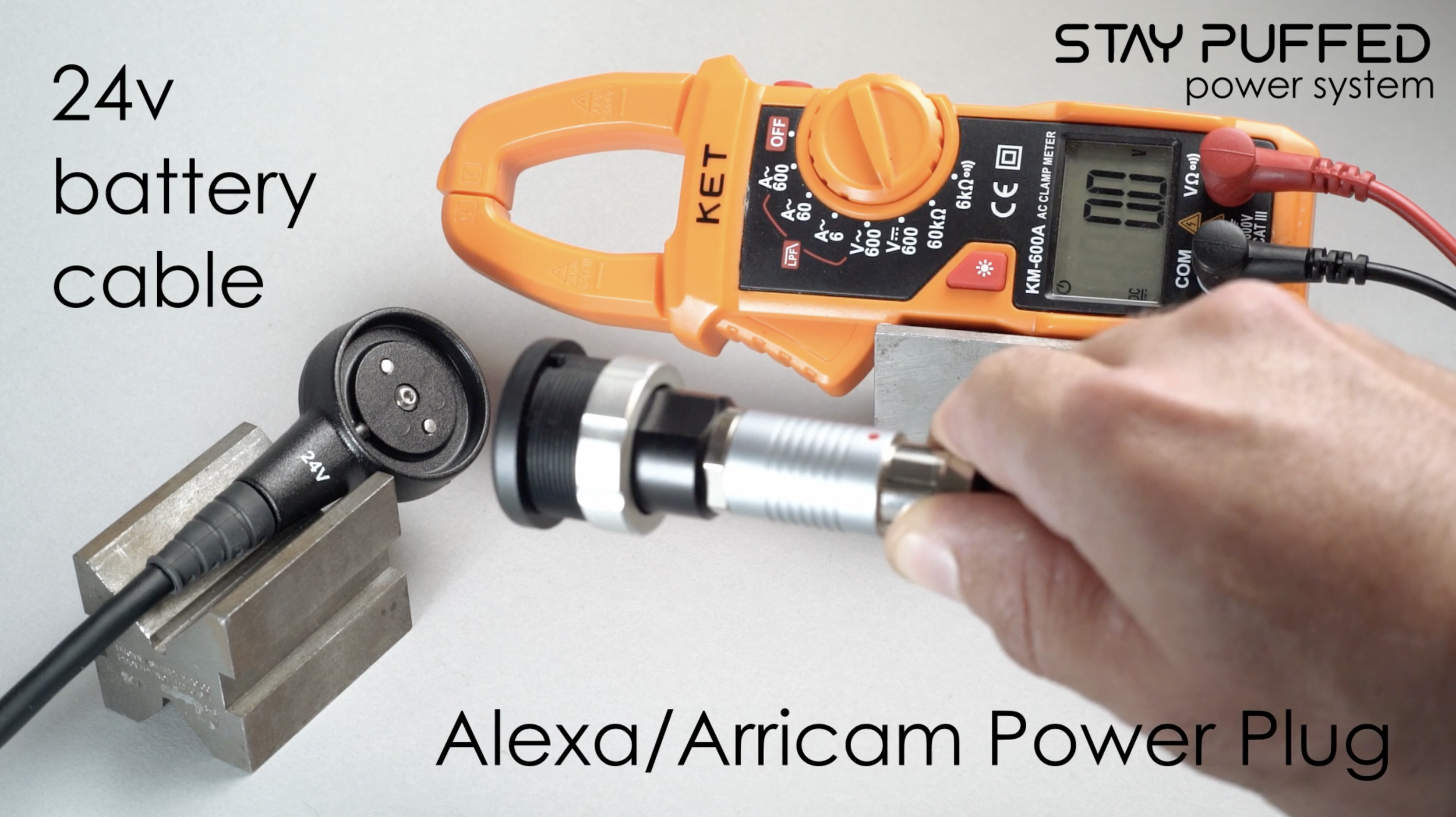

Our Stay Puffed power system individual power plug for full sized Alexa and Arricam cameras.
Kit Includes:
-Alexa/Arricam Power Plug
-3pin XLR 24v Battery Cable (ARRI POLARITY 1-, 2+)
Note:
-This cable is for use with standard “Arri polarity” block batteries and power supplies. DO NOT use this cable with Panavision equipment. If you need a Panavision polarity version of this cable please email us and we will be happy to make you one.
Our Stay Puffed power system ready to go for Alexa Mini, Mini LF, Amira, and Alexa35 camera bodies. (Also compatible with Ursa Cine 12K)
NOW AVAILABLE IN RIGHT ANGLE!
Kit Includes:
-Alexa Mini/Amira Power Plug
-3pin XLR 24v Battery Cable (ARRI POLARITY 1-, 2+)
—or—
-4pin XLR 12v Battery Cable
Don’t know which battery cable to choose? If you are using newer generation power distro boxes we really really really recommend the 24v cable. Some older “d-boxes” unfortunately may only be compatible with 12v block batteries, but with newer systems, whenever using 12v-standard on-board batteries it is hugely advantageous for proper hot-swap prioritization to have the block battery voltage be higher than the on-board battery voltage. Want to learn more? Just shoot us an email!
Note:
-This cable is for use with standard “Arri polarity” block batteries and power supplies. DO NOT use this cable with Panavision equipment. If you need a Panavision polarity version of this cable please purchase this cable separately on the StayPuffed page.
Our Stay Puffed power system ready to go for Sony Venice/Burano camera bodies and any other standard 12v 4pin XLR equipment.
Now available with either straight or right-angle camera plugs!
Kit Includes:
-Sony Venice Power Plug (4pin XLR)
-4pin XLR 12v Battery Cable
****IMPORTANT NOTE: The Venice plug in this kit will NOT function with our 24v battery cables. It is sold here with, and is only compatible with the included 12v battery cable. If you would like to run your Venice at 24v please email us to discuss custom setups.****
Our Stay Puffed power system ready to go for all standard 3pin XLR 24v equipment. Especially well suited for the Core Helix PMC camera backs for Venice/Venice2 (when fitted with a 3pin XLR input).
Now Available in both straight and right-angle configurations!
Kit Includes:
-3pin XLR Power Plug
-3pin XLR 24v Battery Cable
Our Stay Puffed power system ready to go for Panavision DXL camera bodies.
Kit Includes:
-Panavision DXL Power Plug
-4pin XLR 12v Battery Cable
Notes:
-This plug is also compatible with the custom Panavision power distribution box they often supply with their Sony Venice cameras.
Our Stay Puffed power system ready to go for RED Ranger camera bodies.
Kit Includes:
-RED Ranger Power Plug
-3pin XLR 24v Battery Cable (ARRI POLARITY 1-, 2+)
—or—
-4pin XLR 12v Battery Cable
Don’t know which battery cable to choose? If you are using newer generation power distro boxes we really really really recommend the 24v cable. Some older “d-boxes” unfortunately may only be compatible with 12v block batteries, but whenever using 12v-standard on-board batteries it is hugely advantageous for proper hot-swapping to have a higher voltage block battery input. Want to learn more? Just shoot us an email!
Note:
-This cable is for use with standard “Arri polarity” block batteries and power supplies. DO NOT use this cable with Panavision equipment. If you need a Panavision polarity version of this cable please email us and we will be happy to make you one.
Our Stay Puffed power system ready to go for any RED DSMC2 camera body, RED V-Raptor, as well as the Ronin 4D.
Kit Includes:
-RED DSMC2 Power Plug
-4pin XLR 12v Battery Cable
NOW AVAILABLE IN A RIGHT-ANGLE VERSION!
Our Stay Puffed power system individual power plug for Alexa Mini, Mini LF, Amira, and Alexa35 cameras.
Yes, it really does fit on the Alexa35.
Now Available in both straight and right-angle configurations!
(Also compatible with Ursa Cine 12K)
Includes:
-Alexa Mini/Amira Power Plug
Our Stay Puffed power system individual power plug for Sony Venice/Burano cameras and all other standard 12v 4pin XLR equipment.
Now Available in both straight and right-angle configurations!
Includes:
-Sony Venice (4pin XLR) Power Plug
****IMPORTANT NOTE: This plug will NOT function with the 24v battery cable. Only compatible with the 12v battery cable. If you would like to run your Venice at 24v please email us to discuss custom setups.****
Our Stay Puffed power system individual power plug for all standard 3pin XLR 24v equipment. Especially well suited for the Core Helix PMC camera back for Venice/Venice2 (when fitted with a 3pin XLR input).
Now Available in both straight and right-angle configurations!
Includes:
-3pin XLR Power Plug
Our Stay Puffed power system individual power plug for full sized Alexa and Arricam cameras.
Includes:
-Alexa/Arricam Power Plug
Our Stay Puffed power system individual power plug for the RED Ranger camera.
Includes:
-RED Ranger Power Plug
Our Stay Puffed power system individual power plug for the Panavision DXL
Includes:
-DXL Power Plug
Notes:
-This Plug is only compatible with 12v battery cables.
-This plug is also compatible with the custom Panavision power distribution box they supply with their Sony Venice cameras.
Our Stay Puffed power system individual power plug for all DSMC2 cameras as well as the Ronin 4D.
Includes:
-Red DSMC2 Power Plug
****IMPORTANT NOTE: This plug will NOT function with the 24v battery cable. Only compatible with the 12v battery cable. If you would like to run your Venice at 24v please email us to discuss custom setups.****
Our Stay Puffed power system individual battery cable for 12v camera systems.
Includes:
-4pin XLR 12v Battery Cable
Our Stay Puffed power system individual battery cable for Panavision 24v camera systems.
PLEASE NOTE: Production versions of this 24v cable will be labeled with red bands and text to indicate Panavision Polarity.
Includes:
-3pin XLR 24v Battery Cable (PANAVISION POLARITY 1+, 2-)
Note:
-This cable is for use ONLY with Panavision block batteries and power supplies. DO NOT use this cable with anything other than Panavision equipment!
Our Stay Puffed power system individual battery cable for 24v camera systems.
Includes:
-3pin XLR 24v Battery Cable (ARRI POLARITY 1-, 2+)
Note:
-This cable is for use with standard “Arri polarity” block batteries and power supplies. DO NOT use this cable with Panavision equipment. If you need a Panavision polarity version of this cable please email us and we will be happy to make you one.
A Note About Custom Connectors
The Stay Puffed system is compatible with any standard 1B Lemo, 2B Lemo, or Neutrik XLR connector irregardless of pin count or configuration. We offer the most common camera connectors as stocked items, but if you have a custom application please be in touch via email and we can likely create a plug to fit your needs!
A NOTE ON MAGENET STRENGTH:
The magnetic connectors employed here have a medium/light hold strength which cannot be changed or adjusted. Separation feel is akin to that of the common Apple MagSafe laptop connection. The primary intention of this system is for power supply when the camera is at rest in-between takes and we think the hold strength is ideal for that application. Customers who plan to use the cables in other circumstances may find the connection too weak.
FEATURES
Offered with plugs for all major cinema cameras
Self-finding connection in three axis
Zero force mating
Voltage-specific mating (12v plugs cannot accidentally mate with 24v cables)
Easy color-coded plug voltage identification (black rings = 12v, silver rings = 24v)
Plugs are 100% short-circuit-proof
System is 100% reverse-polarity proof
Zero arcing potential
Repositionable (locking) cable outlet direction in 22.5° increments
Easy to Clean and service
How to: SP XLR RA adjustment
How to: SP Alexa mini/35 RA adjustment
How to: SP hardmount ring install
How to: Check and reassemble Lemo camera plugs
SPECIFICATIONS
alexa/arricam plug dimensions (length x diameter)
3 x 1.3" (75 x 33mm)
2.75oz (78g)
alexa mini/mini lf/amira/panavision dxl plug dimensions (length x diameter)
2.6 x 1.3" (66 x 33mm)
1.83oz (52g)
red dsmc2 plug dimensions (length x diameter)
2.4 x 1.3" (60 x 33mm)
1.48oz (42g)
sony venice plug dimensions (length x diameter)
2.7 x 1.3" (69 x 33mm)
2.22oz (63g)
12v battery cables
male 4pin XLR connector (pin1 ⎯, pin4 +)
6.5ft (2m) overall length
1.5” (39mm) max face width
5.57oz (158g)
24v battery cables
male 3pin XLR connector (pin1 ⎯, pin2 +)
6.5ft (2m) overall length
1.5” (39mm) max face width
5.57oz (158g)
max current load
15A
